Widget Class Reference

#include <widget.h>

Inheritance diagram for Widget:

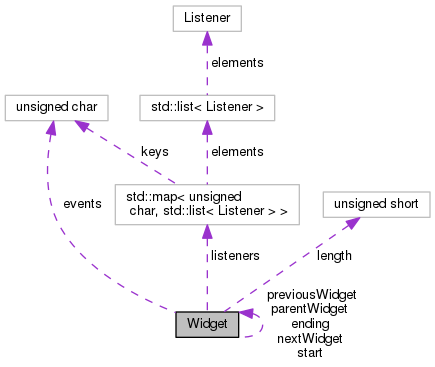

Collaboration diagram for Widget:

Public Member Functions
virtual void	draw ()
void	_parent (Widget *parentWidget)
Widget *	firstChild ()
Widget *	lastChild ()
Widget *	parent ()
void	_next (Widget *nextWidget)
Widget *	next ()
void	_previous (Widget *previousWidget)
Widget *	previous ()
void	add (Widget *child)
unsigned short	childLength ()
std::vector< Widget * >	children ()
bool	event (unsigned char name)
void	listener (unsigned char name, Listener function)
void	dispatch (unsigned char name)
	Widget ()

Public Attributes
Widget *	parentWidget
Widget *	start
Widget *	ending
Widget *	nextWidget
Widget *	previousWidget
unsigned short	length
unsigned char	events
std::map< unsigned char, std::list< Listener > >	listeners

Detailed Description

Basic class of the console widget (to store different widgets in one list) Contains widgets tree for parsing events by Console class

Parameters

{Widget*}	parentWidget - parent widget
{Widget*}	start - pointer to the first child of current widget
{Widget*}	ending - pointer to the last child of current widget
{Widget*}	nextWidget - pointer to the next sibling
{Widget*}	previousWidget - pointer to the previous sibling
{unsigned	short} length - amount of children
{unsigned	char} events - binary store for events could be dispatched at current widget
{std::map<unsigned	char, std::list<Listener>>} listeners - store for event listeners

Definition at line 36 of file widget.h.

Constructor & Destructor Documentation

Widget::Widget

(

)

Definition at line 172 of file widget.cpp.

Member Function Documentation

void Widget::_next

(

Widget *

nextWidget

)

Sets next widget

Parameters

{Widget*}

nextWidget - new next widget

Definition at line 50 of file widget.cpp.

Here is the caller graph for this function:

void Widget::_parent

(

Widget *

parentWidget

)

Setter for parent property

Parameters

{Widget*}

parentWidget - new parent widget

Definition at line 14 of file widget.cpp.

Here is the caller graph for this function:

void Widget::_previous

(

Widget *

previousWidget

)

Sets previous widget

Parameters

{Widget*}

previousWidget - new previous widget

Definition at line 68 of file widget.cpp.

Here is the caller graph for this function:

void Widget::add

(

Widget *

child

)

Adds a new child to the current widget

Parameters

{Widget*}

child - new child widget

Definition at line 86 of file widget.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned short Widget::childLength

(

)

Returns amount of children

Returns

{unsigned short}

Definition at line 112 of file widget.cpp.

Here is the caller graph for this function:

std::vector< Widget * > Widget::children

(

)

Returns array of child widgets

Returns

{std::vector<Widget*>}

Definition at line 121 of file widget.cpp.

Here is the call graph for this function:

void Widget::dispatch

(

unsigned char

name

)

Dispatches event on widget Calls all event listeners binded on given event to the widget

Parameters

{unsigned

char} name - name of the event

Definition at line 161 of file widget.cpp.

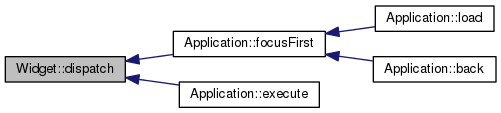

Here is the caller graph for this function:

void Widget::draw ( )

virtual

Drawing widget method

Reimplemented in Menu, and MenuItem.

Definition at line 7 of file widget.cpp.

Here is the caller graph for this function:

bool Widget::event

(

unsigned char

name

)

Checks if event is dispatchable

Parameters

{unsigned

char} name - name of the event

Returns

{bool} - true if event listeners are existing and active

Definition at line 140 of file widget.cpp.

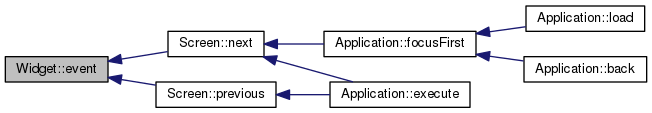

Here is the caller graph for this function:

Widget * Widget::firstChild

(

)

Returns first child of widget

Returns

{Widget*}

Definition at line 32 of file widget.cpp.

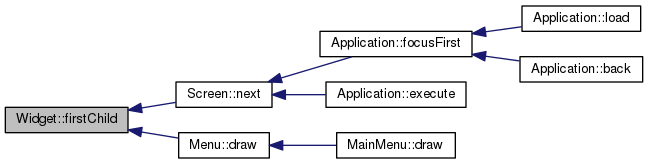

Here is the caller graph for this function:

Widget * Widget::lastChild

(

)

Returns last child of widget

Returns

{Widget*}

Definition at line 41 of file widget.cpp.

Here is the caller graph for this function:

void Widget::listener	(	unsigned char	name,
		Listener	function
	)

Sets listener to the event

Parameters

{unsigned	char} name - name of the event
{Listener}	function - event listener function

Definition at line 150 of file widget.cpp.

Here is the caller graph for this function:

Widget * Widget::next

(

)

Getter for next widget

Returns

{Widget*}

Definition at line 59 of file widget.cpp.

Here is the caller graph for this function:

Widget * Widget::parent

(

)

Getter for parent property

Returns

Definition at line 23 of file widget.cpp.

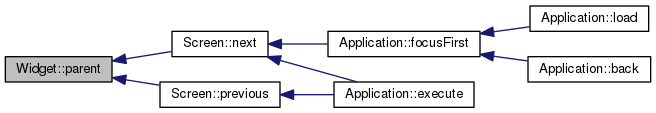

Here is the caller graph for this function:

Widget * Widget::previous

(

)

Getter for previous widget

Returns

{Widget*}

Definition at line 77 of file widget.cpp.

Here is the caller graph for this function:

Member Data Documentation

Widget* Widget::ending

Definition at line 41 of file widget.h.

unsigned char Widget::events

Definition at line 45 of file widget.h.

unsigned short Widget::length

Definition at line 44 of file widget.h.

std::map<unsigned char, std::list<Listener> > Widget::listeners

Definition at line 46 of file widget.h.

Widget* Widget::nextWidget

Definition at line 42 of file widget.h.

Widget* Widget::parentWidget

Definition at line 39 of file widget.h.

Widget* Widget::previousWidget

Definition at line 43 of file widget.h.

Widget* Widget::start

Definition at line 40 of file widget.h.

---

The documentation for this class was generated from the following files:

• /home/travis/build/echo-team/Snoke/app/Widgets/widget.h
• /home/travis/build/echo-team/Snoke/app/Widgets/widget.cpp
